Friction » Grinder / Slotter / Chamfer
Grinder / Slotter / Chamfer

The Slotter/ Chamfer/ Grinder machine is designed to replace the three single operation machines needed to slot, chamfer, and grind brake pads. However, Corsteel also manufactures single machines, like Vertical Grinders and Slotters; or double machines like Grinder-Slotters and Slotter-Chamfers.

Heavy Duty G/S/CH

This heavy duty Slotter/Chamfer/Grinder machine is designed to replace the three single operation machines needed to slot, chamfer, and grind brake pads.

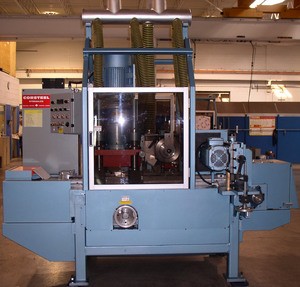

Vertical Grinder

This vertical surface grinder is specifically designed to grind the surface of brake pads.



In-Line Grinder Slotter

This Grinder / Slotter machine is designed to replace the two single operation machines needed to slot and grind brake pads. Any of the two functions maybe performed independently of the other operation.

In-Line Grinder-Slotter-Chamfer

This Slotter/Chamfer/Grinder machine is designed to replace the three single operation machines needed to slot, chamfer, and grind brake pads. It also replaces the slower multi-function reciprocating machines.

In-Line Servo Grinder-Slotter-Chamfer

The Grinder/Slotter/Chamfer machine is a fully automated three-stage process designed to replace the three single operation machines needed to grind, slot, and chamfer brake pads. It is equipped with a multi-speed conveyor that carries the pads throughout each stage. This machine can also operate as a three stage single operating machine with each stage running independently to each other. So if grinding is the only process needed then only the grinder can be operating while the slotter and chamfer are turned off.  This is also possible with slotting and chamfering separately too. The machine can also accommodate different sizes of brake pads knowing that a specific fixture is used for a specific size brake pad. The machine is monitored through the control panel that is provided with a touch screen display that provides the operator with information about the operating mode of the machine. It also displays any safety precautions that the operator must follow prior to start up.

In-Line Grinder-Slotter-Chamfer c/w Magazine Feed

The Grinder/Slotter/Chamfer machine is a fully automated three-stage process designed to replace the three single operation machines needed to grind, slot, and chamfer brake pads.  It is equipped with a multi-speed conveyor that carries the pads throughout each stage.  This machine can also operate as a three stage single operating machine with each stage running independently to each other.  So if grinding is the only process needed then only the grinder can be operating while the slotter and chamfer are turned off.  This is also possible with slotting and chamfering separately too.  The machine can also accommodate different sizes of brake pads knowing that a specific fixture is used for a specific size brake pad.  The machine is monitored through the control panel that is provided with a touch screen display that provides the operator with information about the operating mode of the machine.  It also displays any safety precautions that the operator must follow prior to start up.

Slotter

This Slotter machine is setup to center slot brake pads and perform a maximum of 1 slot per brake pad.  Slot depth is adjustable depending on the customer’s specifications.

Slotter-Chamfer

The Slotter in this machine is setup to center slot brake pads and is designed to perform a maximum of 3 slots per brake pad. The Chamfer machine in turn is designed to chamfer compound and simple angles.
