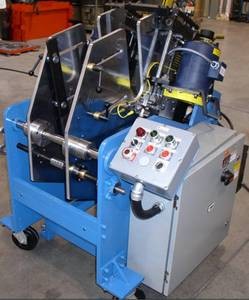

This machine puts marks on a brake pad, intended to be used as a guide, to indicate when the brake pad is worn out or it should be replaced. It consists of a magazine that feeds a rotating arm which, in turn, pushes the parts through the marking tool.
Standard Features
Block guides to prevent two blocks entering into guides at once and jamming the machine.
Set-up blocks to reduce set-up time for different parts.
Machine supplied with vacuum exhaust locations and adequately guarded to ensure working area is free from dust and operator is protected from all moving parts.
Part piece counter.
Locking device to hold the motor-cutter assembly at its up position on both sides to facilitate the operator.
Locking mechanism to hold the height of the cutters steady.
Conveyor to interface with paint line.
Options
This machine can be designed according to customer's functional specifications.
Specifications
PRODUCTION RATE
30 PARTS / MIN
SETUP TIME
< 10 MINUTES
ELECTRICAL REQUIREMENTS
575V / 3PH / 60 Hz
SYSTEM CONNECTION AT 5KA MAX
30A DISCONNECT
MAXIMUM FUSE 25 AMP TIME DELAY
MOTORS & DRIVES
CUTTERS: 1 HP 230V 3 PH WITH FREQ DRIVE CONTROL (WEG CFW08)
FEED ARM: ¼ HP 230V 3 PH WITH FREQ. DRIVE CONTROL (WEG CFW08)
