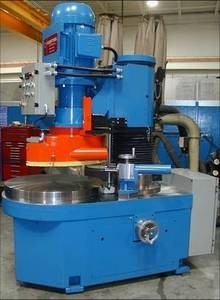

This vertical surface grinder is specifically designed to grind the surface of brake pads.
Standard Features
This machine will grind all loose brake pads as well as flat backed IM parts in a loose fixture. IM parts with protrusions on the plate will need individual fixtures for each brake part.
Options
â–ª 25 HP Motor
â–ª Table driven by a 2-hp motor and gear reducer controlled by
an AC Frequency Drive
â–ª 14”Diamond grinding wheel
â–ª Fixture pocket plate
â–ª New grind wheel dust cover/guard design
Specifications
GENERAL
DIMENSIONS (LxWxH)
78" x 45" x 81”
TABLE DIAMETER
36”
SPEED
VARIABLE FROM 1.0 TO 8.75RPM
MAX. HEIGHT BETWEEN TABLE -WHEEL
0 INCHES TO 12 INCHES
GRINDER WHEEL DIAMETER
14”
TYPE OF WHEEL
DIAMOND
GRINDER MOTOR HP
25HP
GRINDING WHEEL SPEED
3600 RPM
TABLE MOTOR HP
2HP
TABLE MOTOR SPEED
1800 RPM
HEAD UP/DOWN MOTOR HP
1HP
HEAD UP/DOWN MOTOR SPEED
1800 RPM
WHEEL HEIGHT ADJUSTMENT
FEED MANUAL WITH HAND WHEEL. RAPID POWER UP AND DOWN GRADUATION OF 0.001”
