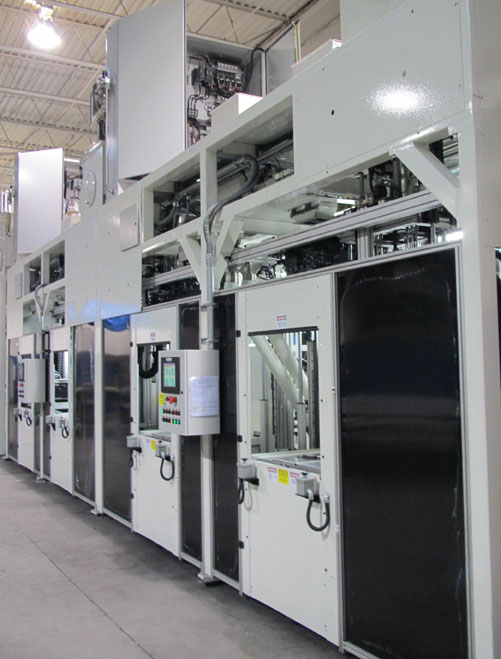

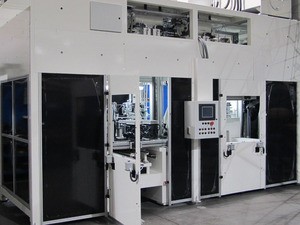

GENERAL
|
|
MACHINE DIMENSIONS (APROX.) (W x D x H)
|
220” x 80" x 220"
|
|
WEIGHT (APPROX.)
|
50,000 LBS. (TANK EMPTY)
|
|
CYLINDER BORE
|
6"
|
|
CYLINDER ROD
|
3”
|
|
STROKE
|
3"
|
|
CYLINDER SPEEDS
|
60 IPM (UP-FAST SPEED)
12 IPM (UP-PRESSING )
|
|
SCALE WEIGHT TOLERANCES
|
+/- 2.0 GRAMS (DEPENDING ON MATERIAL)
|
|
HOPPER CAPACITY
- BACKING
- FRICTION
|
1500 CU.IN.
1500 CU.IN.
|
|
WEIGHING CAPACITY
|
700 GRAMS
|
|
MAXIMUM PRESSURE
|
200 BAR (HIGH PRESSURE)
35 BAR (HIGH VOLUME)
|
|
RESERVOIR CAPACITY
|
200 US GALLONS
|
|
PRESS TONNAGE
|
VARIABLE 4 TO 40 TON
|
|
AIR REQUIREMENTS
|
7.5 BAR AT 2 FT. / MIN.
(DRY AIR)
|
|
WATER COOLER
|
8 GAL. / MIN. (MINIMUM) @ 85 °F. ADJUST FLOW RATE WITH RISE IN TEMPERAT.
|
|
POWER AND CONTROL
|
|
POWER REQUIREMENTS
|
380V/3PH/60Hz/168A
200A FUSED DISCONNECT
|
|
HORSEPOWER
|
2x25 HP MAIN MOTORS ~58HP TOTAL
|
|
INTERNAL CONTROLLER
|
AB SLC-503
|
|
CYCLE TIME
|
DEPENDS ON OPERATOR FILLING SPEED AND PROCESSING TIME
|
|
PLC INTERFACE
|
EZD-T10C-SC BY AVG
|
