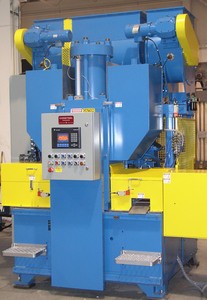

This 75 Ton Dual Layer Preformer is a four-post down-acting press designed specifically to pre-shape loose material (friction and backing) into an accurate weight and easily handled "preform" creating less dust and material separation than conventional models. This system is also designed to work automatically without supervision with the exception of an operator periodically removing the preforms. This operation can also be performed by means of a conveyor system.
Standard Features
75 Ton Dual Layer System
Up to 1 gram accuracy
Automatic material leveling system
Secondary part weight control with out of range reject system
Options
NON STANDARD FEATURES AND OPTIONS
- Electrical plug inside panel
- Water valve
- Front load quick change
- AB panel view screen with improved display program
- Integrated hydraulic power unit for minimal floor print area
Specifications
MACHINE DIMENSIONS (APPROX.)
(W x D x H)
115” x 60" x 100"
WEIGHT (APPROX.)
10,000 LBS. (TANK EMPTY)
DAYLIGHT
1
CLEARANCE BETWEEN POSTS
12-1/2" x 12-1/2"
MOLD MOUNTING PATTERN
QUICK CHANGE
CYLINDER BORE
8"
STROKE
4"
CYLINDER SPEEDS
UP ON REGEN160 IPM
PRESSING22 IPM
RETURN367 IPM
SCALE WEIGHT TOLERANCES
+/- 2.0 GRAMS (DEPENDING
ON MATERIAL)
HOPPER CAPACITY
-BACKING
-FRICTION
1000 in.3
1700 in.3
WEIGHING CAPACITY
500 GRAMS
MAXIMUM PRESSURE
3000 PSI(HIGH PRESSURE)
400 PSI(HIGH VOLUME)
RESERVOIR CAPACITY
150 US GALLONS
PRESS TONNAGE
VARIABLE 23 TO 75 TON
AIR REQUIREMENTS
80 PSI AT 2 FT. / MIN.
(DRY AIR)
WATER COOLER
8 GAL. / MIN. (MINIMUM)
@ 85 DEGREES F. ADJUST
FLOW RATE WITH RISE IN
TEMPERATURE.
