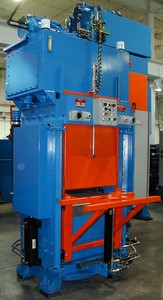

Used 330Ton 6 Daylight Cure Press
Take advantage of these machines originally manufactured by us, and refurbished to our quality standards !

Specifications
GENERAL
|
PRESS ONLY
DIMENSIONS (L x W x H)
|
62" x 64" x 78"
|
|
PRESS AND HYDRAULIC UNIT
DIMENSIONS (LXWXH)
|
62" x 64" x 119"
|
|
PRESS ONLY WEIGHT
|
16,000 LBS.
|
|
HYDRAULIC UNIT WEIGHT
|
4500 LBS. EMPTY
6200 LBS. FULL
|
|
PRESS TONNAGE
|
330 TON MAXIMUM
|
|
CYLINDER STROKE
|
11”, 13”, 15” (DEPEND ON
NUMBER OF LAYERS)
|
|
CYLINDER BORE
|
20"
|
|
ROD DIAMETER
|
16"
|
|
JACK CYLINDER STROKE
|
13"
|
|
DAYLIGHT AREA
|
18" WIDE x 16” DEEP
|
|
DAYLIGHT CLEARANCE
|
2.5” WITHOUT MOLD
|
|
DAYLIGHT NUMBER OF
|
5
|
FLASH MOLD HEATING
|
ELEMENTS PER PLATEN
|
6 HEATERS, 2 CONNECTED
IN SERIES
|
|
HEAT PER PLATEN
|
6600 WATTS
|
|
ELEMENT SPECIFICATIONS
|
4-@ 300V @ 1000W EACH
16” LG. X 5/8 ROUND
2-@ 300V @ 1300W EACH
16” LG. X 5/8 ROUND
(SHADED WATT HEATER)
|
POWER AND CONTROL
|
POWER REQUIREMENTS
|
460V /60HZ /3PH /123A
|
|
HORSEPOWER
|
15 HP
|
|
HIGH PRESS PUMP
MAXIMUM PRESSURE
|
2100 PSI
|
|
TABLE MAXIMUM PRESSURE
|
500 PSI
|
|
RESERVOIR CAPACITY
|
120 US GALLONS
|
|
TYPE OF HYDRAULIC OIL
|
AW 46
|
|
COOLING REQUIREMENT
|
WATER @ 10 GAL/MIN
@ MAX. 85 DEGREES FAHRENHEIT. ADJUST FLOW RATE ACCORDINGLY WITH RISE IN TEMPERATURE.
|
|
INTERNAL CONTROLLER
|
ALLEN BRADLEY SLC 502
120 VAC OUT
|
|
AIR REQUIREMENTS
|
800 PSI @ 10 SCFM
(DRY AIR)
|
|
|
|
