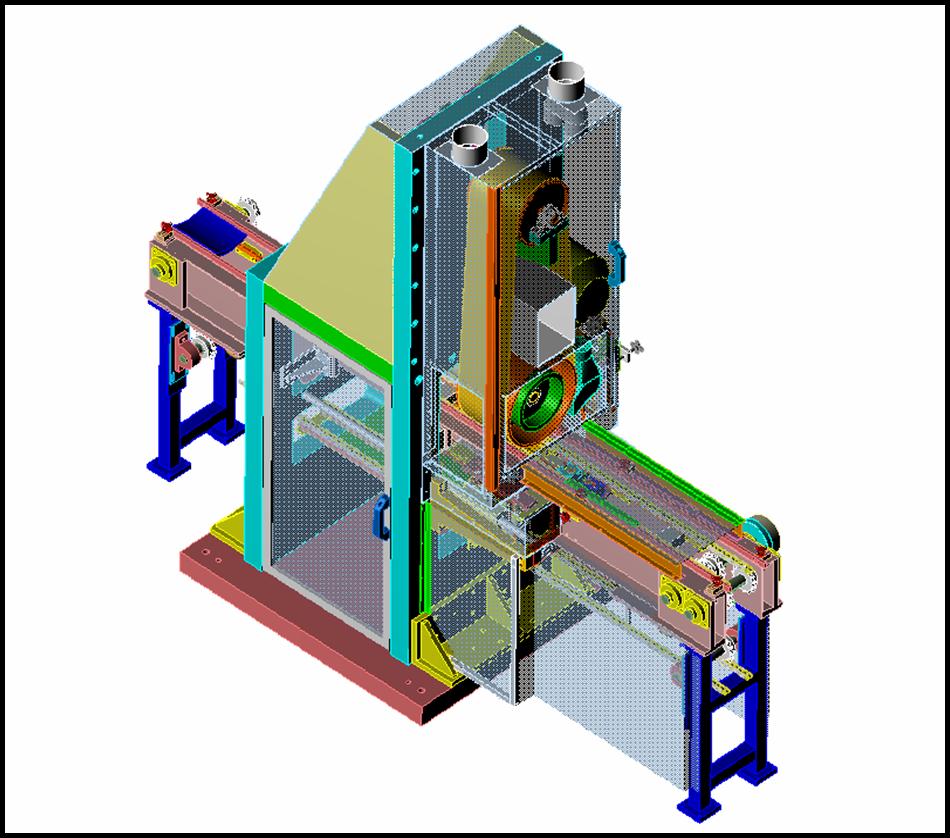

ID Grinder
The ID grinder is set up to surface grind the inside diameter of the brake block. A special sanding belt is used to achieve the grind.
Other Grinders are:
ID GRINDER DIAMOND
ID-GRINDER BELT
Standard Features
▪ ID Grind part loading
▪ ID Grind conveyor
▪ ID Grinder
▪ Main electrical panel
▪ Operator pushbutton panel
▪ ID Grind part loading |
Specifications
|
DIMENSIONS (L X W X H)
|
410 X 240 X 120
|
|
WEIGHT TOTAL (APROX)
|
15,000 LBS
|
|
HORSEPOWER (TOTAL)
|
31 HP
|
|
ELECTRICAL
|
180A 460V 3PH
|
|
PRODUCTION RATE MAXIMUM
|
20 PART/MINUTE
|
|
MIN-MAX BLOCK HEIGHT
|
4 - 10 INCH
|
|
MIN-MAX BLOCK ID RADIUS
|
5.5 - 8.25 INCH
|
|
MIN-MAX BLOCK THICKNESS
|
0.4 - 1.0 INCH
|
|
GRIND TYPE
|
SANDING BELT
|
|
BELT GRIT
|
70-80 (SAND PAPER SIZING)
|
|
|
|
|
